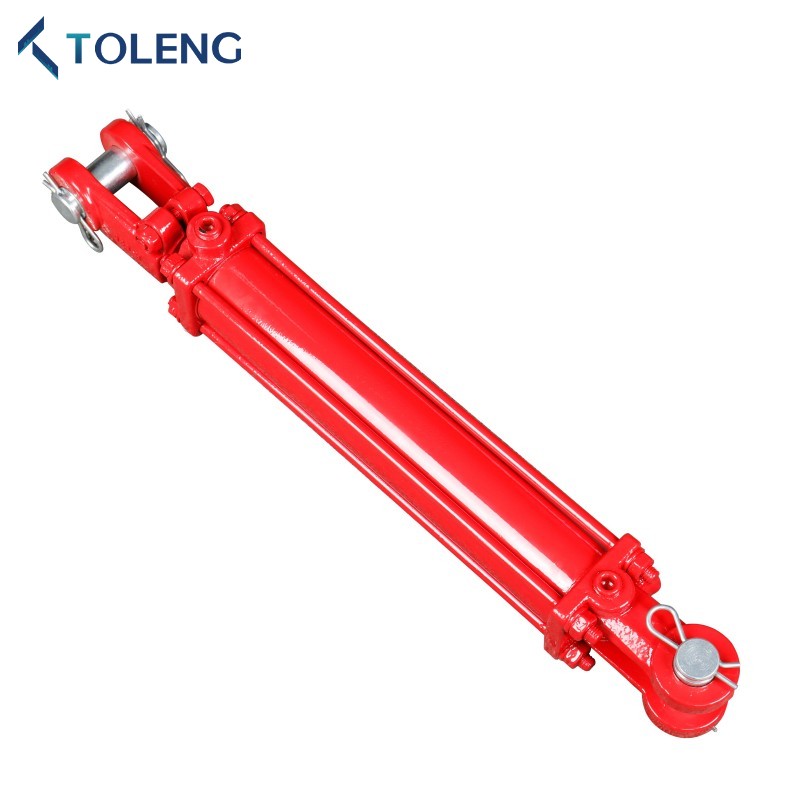

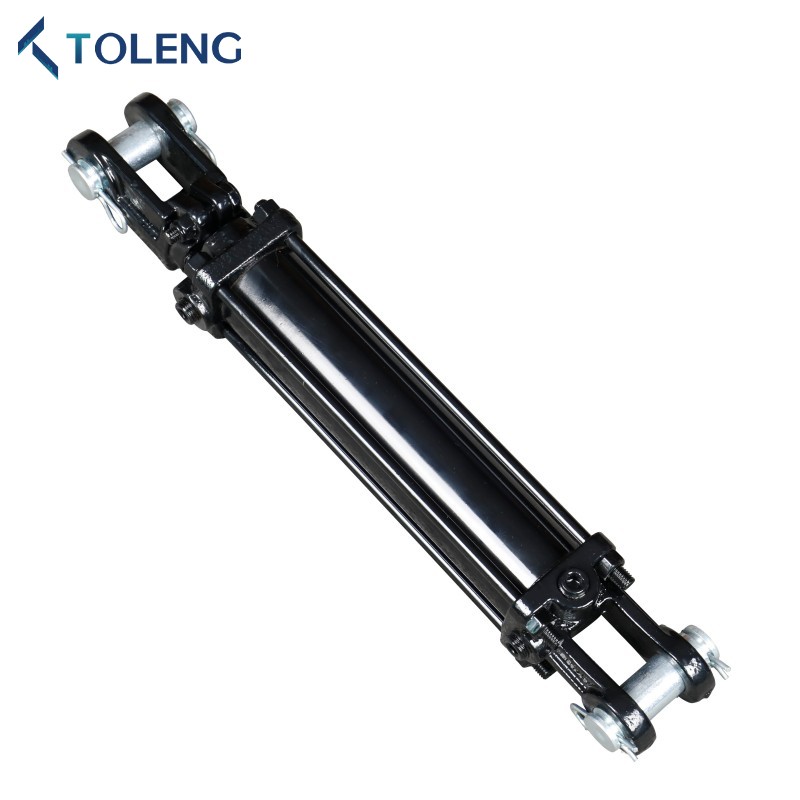

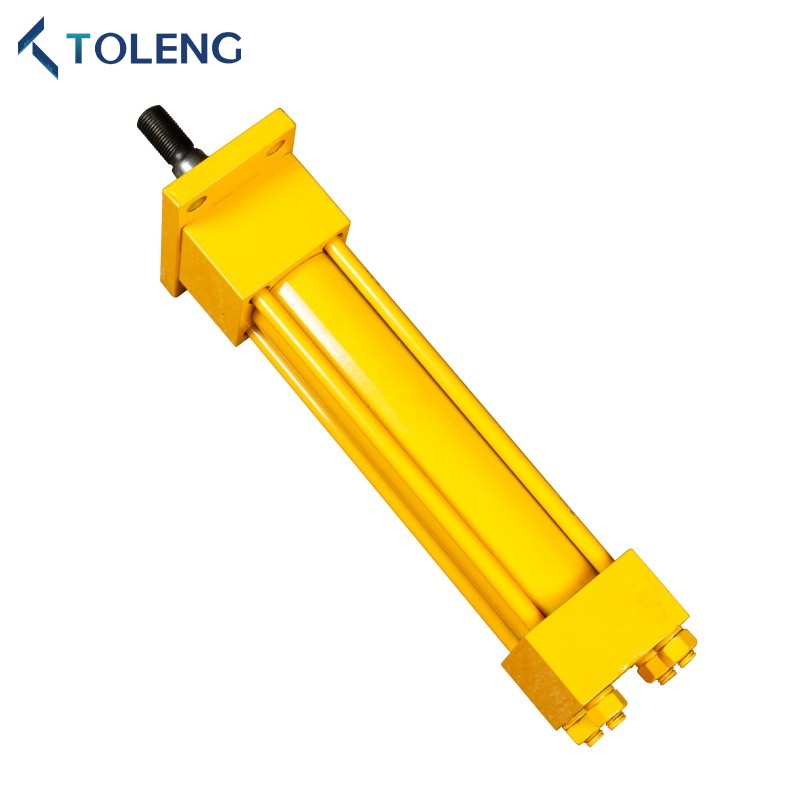

Standaard TR-serie Tie-Rod hydraulische cilinder
Standaard TR-serie Tie-Rod hydraulische cilinder
Toleng is een professionele hydraulische cilinderfabrikant en leverancier in China. We zijn al meer dan 20 jaar gespecialiseerd in de hydraulische cilinder voor de standaard TR-serie Tie-Rod hydraulische cilinder. Onze producten zijn geëxporteerd naar consumenten over de hele wereld en hebben een goede reputatie ontvangen. We kijken ernaar uit om een zakelijke partnerschap op lange termijn met u op te zetten.
Stuur onderzoek
Productomschrijving
Toleng Standard TR-serie TIE-ROD Hydraulische cilinder is een essentiële component binnen het veld Agricultural Machinery, bekend om zijn betrouwbare en efficiënte prestaties. Het is zorgvuldig ontworpen met precisie en duurzaamheid en garandeert soepel in verschillende landbouwtoepassingen. Onze standaard TR-serie tie-rod hydraulische cilinder wordt geleverd met verschillende specificaties om aan specifieke vereisten te voldoen.
Standaard TR-serie Tie-Rod hydraulische cilindertoepassing
Toleng Standard TR-serie Tie-ROD Hydraulische cilinder vindt uitgebreid gebruik voornamelijk in de landbouwmachinesindustrie. Het wordt vaak gebruikt in verschillende landbouwmachines, zoals tractorbevestigingen, combinatie van oogstmachines, zaaier, enz.
Standaard TR-serie Tie-Rod hydraulische cilinderspecificatie
1. Toepassing-actuele toepassingen
2. Buis: hoogwaardige gezegde/gescheurde koude getrokken pijp
3.Piston staaf: Hoge sterkte gehard, hard verchroomd
4.Piston: ductiel ijzer
5.ie-rods: hoog trekstaal
6. Werkdruk: 2500/3000 psi
7.Baint: zwart, groen, rood, geel, enz. Aangepaste kleuren zijn beschikbaar.
2. Buis: hoogwaardige gezegde/gescheurde koude getrokken pijp
3.Piston staaf: Hoge sterkte gehard, hard verchroomd
4.Piston: ductiel ijzer
5.ie-rods: hoog trekstaal
6. Werkdruk: 2500/3000 psi
7.Baint: zwart, groen, rood, geel, enz. Aangepaste kleuren zijn beschikbaar.
Standaard TR-serie Tie-Rod hydraulische cilinder technische parameters
| DEEL NUMMER |
Insider DIAMETER |
BUITENSTAANDER DIAMETER |
*A | B | *C | D | *E | F | *G | H | I | J | HENGEL DRAAD |
HAVEN |
| TTR3-20- | 2,00 " | 2.50 " | 10.25 " | 2,00 " | 1.01 " | 2,00 " | 3.75 " | 2.25 " | 1.12 " | 2.06 " | 2.12 " | 2.62 " | 1.125-12 UNF | SAE#8 |
| TTR3-25- | 2.50 " | 3.00 " | 10.25 " | 2,00 " | 1.01 " | 2,00 " | 3.75 " | 2.25 " | 1.12 " | 2.06 " | 2.12 " | 2.62 " | 1.125-12 UNF | SAE#8 |
| TTR3-30- | 3.00 " | 3.50 " | 10.25 " | 2.25 " | 1.01 " | 2.25 " | 3.75 " | 2.25 " | 1.12 " | 2.06 " | 2.12 " | 2.62 " | 1.250-12 UNF | SAE#8 |
| TTR3-35- | 3.50 " | 4,00 " | 10.25 " | 2.50 " | 1.01 " | 2.50 " | 3.62 " | 2.50 " | 1.12 " | 2.06 " | 2.12 " | 2.75 " | 1.250-12 UNF | SAE#8 |
| TTR3-40- | 4,00 " | 4.50 " | 10.25 " | 2.50 " | 1.01 " | 2.50 " | 3.56 " | 2.62 " | 1.12 " | 2.06 " | 2.12 " | 2.75 " | 1.250-12 UNF | SAE#8 |
| TTR3-50-50 | 5,00 " | 5.50 " | 12.25 " | 2.87 " | 1.26 " | 2.75 " | 4.18 " | 3.50 " | 1.12 " | 2.25 " | 2.12 " | 3.31 " | 1.500-12 UNF | SAE#10 |
| *Voor 8.00 "ASAE slag:*A = 12.25" en voor 16.00 "Asae slag:*A = 15,50" | ||||||||||||||
| *Voor 8,00 "slag:*E = 5,75" (2,00 "tot 3,00" boring)*E = 5.62 "(3,50" boring)*E = 5.56 "(4,00" boring) | ||||||||||||||
| *Voor 16.00 "ASAE slag:*E = 9.00" (2,00 "tot 3,00" boring)*E = 8.87 "(3,50" boring)*E = 8.81 "(4,00" boring) = 7,43 "(5,00" boring) | ||||||||||||||
| *Voor 5,00 "boring:*g (frontglings) = 1,18"*g (eindkap) = 1,31 " | ||||||||||||||
| *Voor 16.00 uur "Asae Strokea:*C = 126" | ||||||||||||||
| Afdichttemperatuurbereik: -30 ℃/+100 ℃ (-22 "f/+212" f) | ||||||||||||||
| Afdichtmaximale snelheid: 3 ft/sec | ||||||||||||||
| Maximaal ingetrokken werkdruk = 3000 psi | ||||||||||||||
| Afmetingen *A en *E zijn voor referenties alleen als Clevis is verstelbaar | ||||||||||||||
| Tie-rod cilinder | |||||||
| Onderdeelnummer | HENGEL DIAMETER |
Boring & HARTINFARCT |
Afmetingen | Poortgrootte | PIN MAAT |
GEWICHT (Lbs) |
|
| Ingetrokken | VERLENGD | ||||||
| TTR30-2004 | 1-1/8 " | 2 "x4" | 14-1/4 " | 18-1/4 " | 3/8 "NPT & SAE#8 |
1 " | 16.8 |
| TTR30-2006 | 2 "x6" | 16-1/4 " | 22-1/4 " | 18.4 | |||
| TTR30-2008 | 2 "x8" | 18-1/4 " | 26-1/4 " | 20.0 | |||
| TTR30-2008-AASA | 2 "x8" | 20-1/4 " | 28-1/4 " | 20.5 | |||
| TTR30-2010 | 2 "X10" | 20-1/4 " | 30-1/4 " | 21.5 | |||
| TTR30-2012 | 2 "x12" | 22-1/4 " | 34-1/4 " | 23.1 | |||
| TTR30-2014 | 2 "x14" | 24-1/4 " | 38-1/4 " | 24.7 | |||
| TTR30-2016 | 2 "x16" | 26-1/4 " | 42-1/4 " | 26.3 | |||
| TTR30-2016-ASAE | 2 "x16" | 31-1/4 " | 47-1/4 " | 26.9 | |||
| TTR30-2018 | 2 "x18" | 28-1/4 " | 46-1/4 " | 279 | |||
| TTR30-2020 | 2 "X20" | 30-1/4 " | 50-1/4 " | 29.5 | |||
| TTR30-2024 | 2 "x24" | 34-1/4 " | 58-1/4 " | 32.6 | |||
| TTR30-2030 | 2 "x30" | 40-1/4 " | 70-1/4 " | 37.4 | |||
| TTR30-2036 | 2 "x36" | 46-1/4 " | 82-1/4 " | 42.2 | |||
| TTR30-2040 | 2 "x40" | 50-1/4 " | 90-1/4 " | 45.3 | |||
| TTR30-2048 | 2 "x48" | 58-1/4 " | 106-1/4 " | 51.7 | |||
| TTR30-2504 | 1-1/4 " | 2.5 "x4" | 14-1/4 " | 18-1/4 " | 3/8 "NPT & SAE# |
1 " | 18.6 |
| TTR30-2506 | 2.5 "x6" | 16-1/4 " | 22-1/4 " | 20.9 | |||
| TTR30-2508 | 2.5 "x8" | 18-1/4 " | 26-1/4 " | 22.8 | |||
| TTR30-2508-ASAE | 2.5 "x8" | 20-1/4 " | 28-1/4 " | 23.6 | |||
| TTR30-2510 | 2.5 "x10" | 20-1/4 " | 30-1/4 " | 25.5 | |||
| TTR30-2512 | 2.5 "x12" | 22-1/4 " | 34-1/4 " | 27.8 | |||
| TTR30-2514 | 2.5 "x14" | 24-1/4 " | 38-1/4 " | 30.2 | |||
| TTR30-2516 | 2.5 "x16" | 26-1/4 " | 42-1/4 " | 32.5 | |||
| TTR30-2516-AASA | 2.5 "x16" | 31-1/4 " | 47-1/4 " | 33.4 | |||
| TTR30-2518 | 2.5 "x18" | 28-1/4 " | 46-1/4 " | 34.8 | |||
| TTR30-2520 | 2.5 "X20" | 30-1/4 " | 50-1/4 " | 371 | |||
| TTR30-2524 | 2.5 "x24" | 34-1/4 " | 58-1/4 " | 41.8 | |||
| TTR30-2530 | 2.5 "X30" | 40-1/4 " | 70-1/4 " | 43.6 | |||
| TTR30-2536 | 2.5 "x36" | 46-1/4 " | 82-1/4 " | 49.6 | |||
| TTR30-2540 | 2.5 "X40" | 50-1/4 " | 90-1/4 " | 53.7 | |||
| TTR30-2548 | 2.5 "X48" | 58-1/4 " | 106-1/4 " | 61.7 | |||
| Tie-rod cilinder | |||||||
| Onderdeelnummer | HENGEL DIAMETER |
Bore8 HARTINFARCT |
Afmetingen | Poortgrootte | PIN MAAT |
GEWICHT (Lbs) |
|
| Ingetrokken | VERLENGD | ||||||
| TTR30-3004 | 1-1/4 " | 3 "x4" | 14-1/4 " | 18-1/4 " | 1/2 "NPT & SAE#8 |
1 " | 22.1 |
| TTR30-3006 | 3 "x6" | 16-1/4 " | 22-1/4 " | 24.0 | |||
| TTR30-3008 | 3 "x8" | 18-1/4 " | 26-1/4 " | 26.1 | |||
| TTR30-3008-ASAE | 3 "x8" | 20-1/4 " | 28-1/4 " | 8.4 | |||
| TTR30-3010 | 3 "x10" | 20-1/4 " | 30-1/4 " | 28.2 | |||
| TTR30-3012 | 3 "x12" | 22-1/4 " | 34-1/4 " | 30.3 | |||
| TTR30-3014 | 3 "x14" | 24-1/4 " | 38-1/4 " | 32.4 | |||
| TTR30-3016 | 1-1/2 " | 3 "x16" | 26-1/4 " | 42-1/4 " | 38.7 | ||
| TTR30-3016-AASA | 3 "x16" | 31-1/4 " | 47-1/4 " | 1-1/4 " | 39.4 | ||
| TTR30-3018 | 3 "x18" | 28-1/4 " | 46-1/4 " | 1 " | 41.2 | ||
| TTR30-3020 | 3 "x20 ' | 30-1/4 " | 50-1/4 " | 43.8 | |||
| TTR30-3024 | 3 "x24 | 34-1/4 " | 58-1/4 " | 470 | |||
| TTR30-3030 | 3 "x30" | 40-1/4 " | 70-1/4 " | 54.3 | |||
| TTR30-3036 | 3 "x36" | 46-1/4 " | 82-1/4 " | 61.4 | |||
| TTR30-3040 | 3 "x40" | 50-1/4 " | 90-1/4 " | 66.2 | |||
| TTR30-3048 | 3 "x48" | 58-1/4 " | 106-1/4 " | 75.9 | |||
| TTR30-3504 | 1-1/4 " | 3.5 "x4" | 14-1/4 " | 18-1/4 " | 1/2 "NPT & SAE#8 |
1 " | 26.0 |
| TTR30-3506 | 3.5 "x6" | 16-1/4 " | 22-1/4 " | 27.8 | |||
| TTR30-3508 | 3.5 "x8" | 18-1/4 " | 26-1/4 " | 30.7 | |||
| TTR30-3508-ASAE | 3.5 "x8" | 20-1/4 " | 28-1/4 " | 9.9 | |||
| TTR30-3510 | 3.5 "X10" | 20-1/4 " | 30-1/4 " | 33.6 | |||
| TTR30-3512 | 3.5 "x12" | 22-1/4 " | 34-1/4 " | 36.6 | |||
| TTR30-3514 | 3.5 "x14" | 24-1/4 " | 38-1/4 " | 39.5 | |||
| TTR30-3516 | 1-1/2 " | 3.5 "x16" | 26-1/4 " | 42-1/4 " | 46.6 | ||
| TTR30-3516-AASA | 3.5 "x16" | 31-1/4 " | 47-1/4 " | 1-1/4 " | 476 | ||
| TTR30-3518 | 3.5 "x18" | 28-1/4 " | 46-1/4 " |
1 " |
50.0 | ||
| TTR30-3520 | 3.5 "X20" | 30-1/4 " | 50-1/4 " | 53.3 | |||
| TTR30-3524 | 3.5 "x24" | 34-1/4 " | 58-1/4 " | 69.2 | |||
| TTR30-3530 | 3.5 "X30" | 40-1/4 " | 70-1/4 " | 679 | |||
| TTR30-3536 | 3.5 "X36" | 46-1/4 " | 82-1/4 " | 77.5 | |||
| TTR30-3540 | 3.5 "X40" | 50-1/4 " | 90-1/4 " | 84.0 | |||
| TTR30-3548 | 3.5 "X48" | 58-1/4 " | 106-1/4 " | 96.8 | |||
| Tie-rod cilinder | |||||||
| Onderdeelnummer | HENGEL DIAMETER |
Boring & HARTINFARCT |
Afmetingen | Poortgrootte | PIN MAAT |
GEWICHT (Lbs) |
|
| Ingetrokken | VERLENGD | ||||||
| TTR30-4004 | 1-1/2 " | 4 "x4" | 14-1/4 " | 18-1/4 " | 1/2 "NPT & SAE#8 |
1 " | 52.0 |
| TTR30-4006 | 4 "x6" | 16-1/4 " | 22-1/4 " | 55.6 | |||
| TTR30-4008 | 4 "x8" | 18-1/4 " | 26-1/4 " | 58.9 | |||
| TTR30-4008-ASAE | 4 "x8" | 20-1/4 " | 28-1/4 " | 18.7 | |||
| TTR30-4010 | 4 "x10" | 20-1/4 " | 30-1/4 " | 62.8 | |||
| TTR30-4012 | 4 "x12" | 22-1/4 " | 34-1/4 " | 66.4 | |||
| TTR30-4014 | 4 "x14" | 24-1/4 " | 38-1/4 " | 70.0 | |||
| TTR30-4016 | 1-3/4 " | 4 "x16" | 26-1/4 " | 42-1/4 " | 84.2 | ||
| TTR30-4016-AASA | 4 "x16" | 31-1/4 " | 47-1/4 " | 1-1/4 " | 85.2 | ||
| TTR30-4018 | 4 "x18" | 28-1/4 " | 46-1/4 " | 1 " | 84.7 | ||
| TTR30-4020 | 4 "x20" | 30-1/4 " | 50-1/4 " | 85.1 | |||
| TTR30-4024 | 4 "x24" | 34-1/4 " | 58-1/4 " | 93.1 | |||
| TTR30-4030 | 2 " | 4 "x30" | 40-1/4 " | 70-1/4 " | 111.6 | ||
| TTR30-4036 | 4 "x36" | 46-1/4 " | 82-1/4 " | 124.8 | |||
| TTR30-4040 | 4 "x40" | 50-1/4 " | 90-1/4 " | 133.6 | |||
| TTR30-4048 | 4 "x48" | 58-1/4 " | 106-1/4 " | 151.1 | |||
| TTR30-5004 | 2 " | 5 "x4" | 16-1/4 " | 20-1/4 " | 1/2 "NPI & SAE#10 |
1-1/4 " | 59.7 |
| TTR30-5006 | 5 "x6" | 18-1/4 " | 24-1/4 " | 64.9 | |||
| TTR30-5008 | 5 "x8" | 20-1/4 " | 28-1/4 " | 70.2 | |||
| TTR30-5010 | 5 "x10" | 22-1/4 " | 32-1/4 " | 75.4 | |||
| TTR30-5012 | 5 "x12" | 24-1/4 " | 36-1/4 " | 80.7 | |||
| TTR30-5014 | 5 "x14" | 26-1/4 " | 40-1/4 " | 85.9 | |||
| TTR30-5016 | 5 "x16" | 28-1/4 " | 44-1/4 " | 91.2 | |||
| TTR30-5016-AASA | 5 "x16" | 31-1/4 " | 47-1/4 " | 92.9 | |||
| TTR30-5018 | 5 "x18" | 30-1/4 " | 48-1/4 " | 96.4 | |||
| TTR30-5020 | 5 "x20" | 32-1/4 " | 52-1/4 " | 101.7 | |||
| TTR30-5024 | 5 "x24" | 36-1/4 " | 60-1/4 " | 112.1 | |||
| TTR30-5030 | 5 "x30" | 42-1/4 " | 72-1/4 " | 12Z9 | |||
| TTR30-5036 | 5 "x36" | 48-1/4 " | 84-1/4 " | 143.6 | |||
| TTR30-5040 | 5 "x40" | 50-1/4 " | 90-1/4 " | 154.1 | |||
| TTR30-5048 | 5 "x48" | 60-1/4 " | 108-1/4 " | 175.1 | |||
