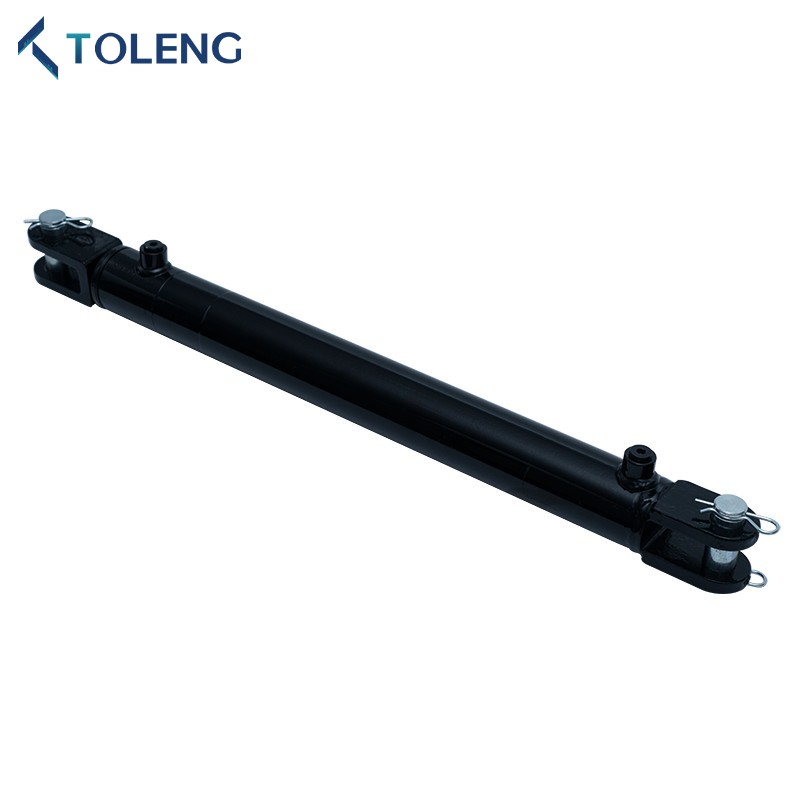

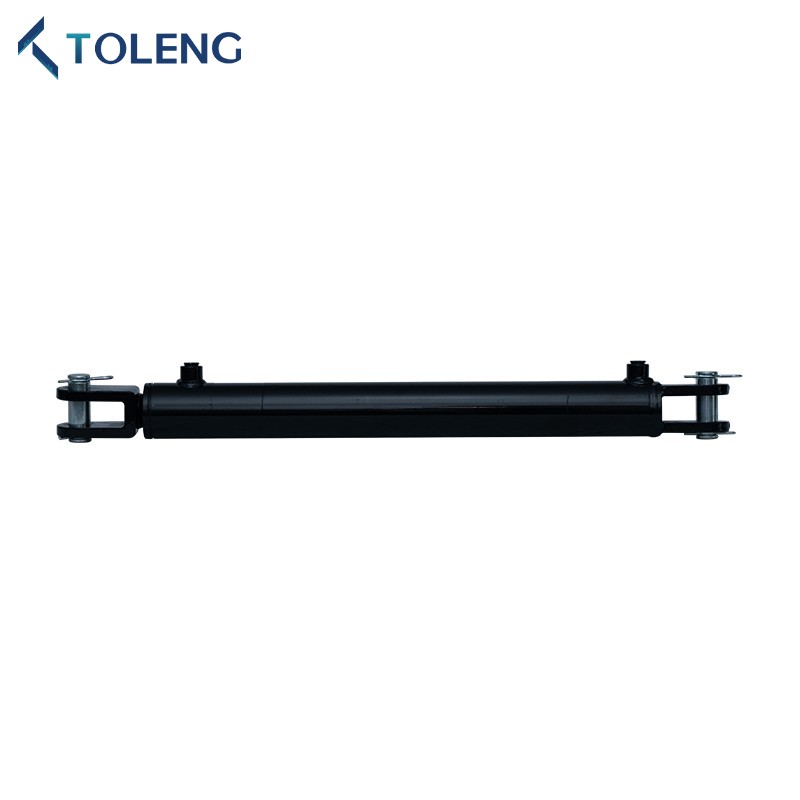

Standaard WCL -serie gelaste hydraulische cilinder
Standaard WCL -serie gelaste hydraulische cilinder
Toleng is een gerenommeerde leverancier van hydraulische cilinders voor industriële toepassingen in China. Onze cilinders voldoen aan elke belangrijke industriestandaard, met andere specificaties die op aanvraag beschikbaar zijn. Alle Toleng Standard WCL -serie gelaste hydraulische cilinders zijn ontworpen om een lange en efficiënte service te leveren met lage onderhoudsonderhoud, wat een hoge productiviteit garandeert gedurende de levensduur van het product.
Stuur onderzoek
Productomschrijving
Toleng Standard WCL -serie gelaste hydraulische cilinder is een gespecialiseerde component die is ontworpen om te voldoen aan unieke en specifieke vereisten in verschillende industrieën. Het is gemaakt met precisie en innovatie, het biedt uitzonderlijke prestaties en betrouwbaarheid. De expertise van Toleng zorgt ervoor dat deze cilinder is ontworpen om de uitdagingen van onconventionele toepassingen te overwinnen.
De standaard WCL -serie hydraulische cilinders zijn eenvoudig te installeren en vertonen hoge prestaties. Elke cilinder ondergaat strikte testen die de normen van de industrie overtreft, waardoor maximale betrouwbaarheid en prestaties worden gegarandeerd. Bovendien zijn ze kostenefficiënt en zijn ze altijd op grote vraag.
De standaard WCL -serie hydraulische cilinders zijn eenvoudig te installeren en vertonen hoge prestaties. Elke cilinder ondergaat strikte testen die de normen van de industrie overtreft, waardoor maximale betrouwbaarheid en prestaties worden gegarandeerd. Bovendien zijn ze kostenefficiënt en zijn ze altijd op grote vraag.
Standaard WCL -serie gelaste hydraulische cilinderspecificatie
1. Werkdruk: 3000 psi
2.Rod: staal, inductie gehard en verchroomd
3.Piston: ductiel ijzer, voor verhoogde duurzaamheid
4.Tube: Steel, Besed en Precision afgewerkt
5.gland: schroefdraad
6.Pin: staal, zinkvermeld
7. SEALS: Hallite, Aston, NOK, DZ, enz. Topkwaliteit. Aanpasbaar.
8. Taint: zwart, groen, rood, geel, enz. Aangepaste kleuren zijn beschikbaar.
2.Rod: staal, inductie gehard en verchroomd
3.Piston: ductiel ijzer, voor verhoogde duurzaamheid
4.Tube: Steel, Besed en Precision afgewerkt
5.gland: schroefdraad
6.Pin: staal, zinkvermeld
7. SEALS: Hallite, Aston, NOK, DZ, enz. Topkwaliteit. Aanpasbaar.
8. Taint: zwart, groen, rood, geel, enz. Aangepaste kleuren zijn beschikbaar.
Standaard WCL -serie gelaste hydraulische cilinder technische parameters
| DEEL NUMMER |
Insider DIAMETER |
BUITENSTAANDER DIAMETER |
*A | B | C | D | *E | F | G | H | J | K | HENGEL DIAMETER |
HAVEN |
| TWCL15- | 1.50 " | 2,00 " | 8.25 " | 1.62 " | 0.87 " | 1.37 " | 2.25 " | 1.37 " | 0,75 " | 0.76 " | 0.93 " | 1.87 " | 1,00 " | 3/8npt |
| TWCL20- | 2,00 " | 2.50 " | 10.25 " | 2.12 " | 1.12 " | 2.12 " | 3.12 " | 2.12 " | 1,00 " | 1.07 " | 1,00 " | 2.06 " | 1.25 " | 3/8npt |
| TWCL25- | 2.50 " | 3.00 " | 10.25 " | 2.12 " | 1.12 " | 2.12 " | 3.12 " | 2.12 " | 1,00 " | 1.01 " | 0.81 " | 2.18 " | 1.50 " | 1/2npt |
| TWCL30- | 3.00 " | 3.50 " | 10.25 " | 2.12 " | 1.12 " | 2.12 " | 3.12 " | 2.12 " | 1,00 " | 1.01 " | 0.81 " | 2.18 " | 1.50 " | 1/2npt |
| TWCL35- | 3.50 " | 4,00 " | 10.25 " | 2.37 " | 1.12 " | 2,00 " | 3.12 " | 2.12 " | 1,00 " | 1.01 " | 0.93 " | 2.18 " | 1.75 " | 1/2npt |
| TWCL40- | 4,00 " | 4.50 " | 10.25 " | 2.37 " | 1.12 " | 1.75 " | 3.12 " | 2,00 " | 1,00 " | 1.01 " | 1.06 " | 2.18 " | 2,00 " | 1/2npt |
| TWCL50- | 5,00 " | 5.50 " | 13.00 " | 3.12 " | 1.62 " | 2.25 " | 3.62 " | 2.25 " | 1.50 " | 1.51 " | 1.37 " | 2.75 " | 2.50 " | 1/2npt |
| *Voor 8 "slag:*a = 12.25" (2 "tot 4" boring) | ||||||||||||||
| *Voor 8 "slag:*e = 5.12" (2 "tot 4" boring) | ||||||||||||||
| *Voor 1,50 "tot 4,00" boring: SAE -poorten zijn beschikbaar | ||||||||||||||
| Afdichttemperatuurbereik: -30 ℃/+100 ℃ (-22 ° F/+212 ° F) | ||||||||||||||
| Afdichtmaximale snelheid: 3 ft/sec | ||||||||||||||
| Maximaal ingetrokken werkdruk = 3000psi | ||||||||||||||
| Gelaste vrouwelijke cilindercilinder | |||||||
| Onderdeelnummer | HENGEL DIAMETER |
Boring & HARTINFARCT |
Afmetingen | Poortgrootte | PIN MAAT |
GEWICHT (Lbs |
|
| Ingetrokken | VERLENGD | ||||||
| TWCL30-1504 | 1 | 1.5 "x4" | 14-1/4 " | 18-1/4 " | 3/8 NPT | 3/4 | 8 |
| TWCL30-1506 | 1.5 "x6" | 16-1/4 " | 22-1/4 " | 9 | |||
| TWCL30-1508 | 1.5 "x8" | 18-1/4 " | 26-1/4 " | 11 | |||
| TWCL30-1510 | 1.5 "X10" | 20-1/4 " | 30-1/4 " | 12 | |||
| TWCL30-1512 | 1.5 "x12" | 22-1/4 " | 34-1/4 " | 13 | |||
| TWCL30-1514 | 1.5 "x14" | 24-1/4 " | 38-1/4 " | 14 | |||
| TWCL30-1516 | 1.5 "x16" | 26-1/4 " | 42-1/4 " | 15 | |||
| TWCL30-1518 | 1.5 "x18" | 28-1/4 " | 46-1/4 " | 17 | |||
| TWCL30-1520 | 1.5 "X20" | 30-1/4 " | 50-1/4 " | 18 | |||
| TWCL30-1524 | 1.5 "x24" | 34-1/4 " | 58-1/4 " | 20 | |||
| TWCL30-2004 | 1-1/4 " | 2 "x4" | 14-1/4 " | 18-1/4 " | 3/8 NPT | 1 " | 14 |
| TWCL30-2006 | 2 "x6" | 16-1/4 " | 22-1/4 " | 16 | |||
| TWCL30-2008 | 2 "x8" | 18-1/4 " | 26-1/4 " | 18 | |||
| TWCL30-2010 | 2 "X10" | 20-1/4 " | 30-1/4 " | 19 | |||
| TWCL30-2012 | 2 "x12" | 22-1/4 " | 34-1/4 " | 21 | |||
| TWCL30-2014 | 2 "x14" | 24-1/4 " | 38-1/4 " | 23 | |||
| TWCL30-2016 | 2 "x16" | 26-1/4 " | 42-1/4 " | 25 | |||
| TWCL30-2018 | 2 "x18" | 28-1/4 " | 46-1/4 " | 26 | |||
| TWCL30-2020 | 2 "X20" | 30-1/4 " | 50-1/4 " | 28 | |||
| TWCL30-2024 | 2 "x24" | 34-1/4 " | 58-1/4 " | 31 | |||
| TWCL30-2028 | 2 "x28" | 38-1/4 " | 66-1/4 " | 35 | |||
| TWCL30-2030 | 2 "x30" | 40-1/4 " | 70-1/4 " | 36 | |||
| TWCL30-2032 | 2 "x32" | 42-1/4 " | 74-1/4 " | 38 | |||
| TWCL30-2034 | 2 "x34" | 44-1/4 " | 78-1/4 " | 40 | |||
| TWCL30-2036 | 2 "x36" | 46-1/4 " | 82-1/4 " | 42 | |||
| TWCL30-2040 | 2 "x40" | 50-1/4 " | 90-1/4 " | 45 | |||
| TWCL30-2048 | 2 "x48" | 58-1/4 " | 106-1/4 " | 52 | |||
| TWCL30-2504 | 1-1/2 " | 2.5 "x4" | 14-1/4 " | 18-1/4 " | 1/2 NPT | 1 " | 18 |
| TWCL30-2506 | 2.5 "x6" | 16-1/4 " | 22-1/4 " | 20 | |||
| TWCL30-2508 | 2.5 "x8" | 18-1/4 " | 26-1/4 " | 24 | |||
| TWCL30-2510 | 2.5 "X10" | 20-1/4 " | 30-1/4 " | 25 | |||
| TWCL30-2512 | 2.5 "x12" | 22-1/4 " | 34-1/4 " | 27 | |||
| TWCL30-2514 | 2.5 "x14" | 24-1/4 " | 38-1/4 " | 29 | |||
| TWCL30-2516 | 2.5 "x16" | 26-1/4 " | 42-1/4 " | 32 | |||
| TWCL30-2518 | 2.5 "x18" | 28-1/4 " | 46-1/4 " | 34 | |||
| TWCL30-2520 | 2.5 "X20" | 30-1/4 " | 50-1/4 " | 36 | |||
| TWCL30-2524 | 2.5 "x24" | 34-1/4 " | 58-1/4 " | 40 | |||
| TWCL30-2528 | 2.5 "x28" | 38-1/4 " | 66-1/4 " | 45 | |||
| TWCL30-2530 | 2.5 "X30" | 40-1/4 " | 70-1/4 " | 47 | |||
| TWCL30-2532 | 2.5 "X32" | 42-1/4 " | 74-1/4 " | 49 | |||
| TWCL30-2534 | 2.5 "X34" | 44-1/4 " | 78-1/4 " | 52 | |||
| TWCL30-2536 | 2.5 "x36" | 46-1/4 " | 82-1/4 " | 54 | |||
| TWCL30-2540 | 2.5 "X40" | 50-1/4 " | 90-1/4 " | 58 | |||
| TWCL30-2548 | 2.5 "X48" | 58-1/4 " | 106-1/4 " | 67 | |||
| Gelaste vrouwelijke cilind cilind er | |||||||
| Onderdeelnummer | HENGEL DIAMETER |
Boring & HARTINFARCT |
Afmetingen | Poortgrootte | PIN MAAT |
GEWICHT (Lbs) |
|
| Ingetrokken | VERLENGD | ||||||
| TWCL30-3004 | 1-1/2 " | 3 "x4" | 14-1/4 " | 18-1/4 " | 1/2npt | 1 " | 22 |
| TWCL30-3006 | 3 "x6" | 16-1/4 " | 22-1/4 " | 24 | |||
| TWCL30-3008 | 3 "x8" | 18-1/4 " | 26-1/4 " | 27 | |||
| TWCL30-3010 | 3 "x10" | 20-1/4 " | 30-1/4 " | 29 | |||
| TWCL30-3012 | 3 "x12" | 22-1/4 " | 34-1/4 " | 31 | |||
| TWCL30-3014 | 3 "x14" | 24-1/4 " | 38-1/4 " | 34 | |||
| TWCL30-3016 | 3 "x16" | 26-1/4 " | 42-1/4 " | 36 | |||
| TWCL30-3018 | 3 "x18" | 28-1/4 " | 46-1/4 " | 39 | |||
| TWCL30-3020 | 3 "x20" | 30-1/4 " | 50-1/4 " | 41 | |||
| TWCL30-3024 | 3 "x24" | 34-1/4 " | 58-1/4 " | 46 | |||
| TWCL30-3028 | 3 "x28" | 38-1/4 " | 66-1/4 " | 51 | |||
| TWCL30-3030 | 3 "x30" | 40-1/4 " | 70-1/4 " | 53 | |||
| TWCL30-3032 | 3 "x32" | 42-1/4 " | 74-1/4 " | 56 | |||
| TWCL30-3034 | 3 "x34" | 44-1/4 " | 78-1/4 " | 58 | |||
| TWCL30-3036 | 3 "x36" | 46-1/4 " | 82-1/4 " | 61 | |||
| TWCL30-3040 | 3 "x40" | 50-1/4 " | 90-1/4 " | 66 | |||
| TWCL30-3048 | 3 "x48" | 58-1/4 " | 106-1/4 " | 75 | |||
| TWCL30-3504 | 1-3/4 " | 3.5 "x4" | 14-1/4 " | 18-1/4 " | 1/2npt | 1 " | 27 |
| TWCL30-3506 | 3.5 "x6" | 16-1/4 " | 22-1/4 " | 30 | |||
| TWCL30-3508 | 3.5 "x8" | 18-1/4 " | 26-1/4 " | 35 | |||
| TWCL30-3510 | 3.5 "X10" | 20-1/4 " | 30-1/4 " | 36 | |||
| TWCL30-3512 | 3.5 "x12" | 22-1/4 " | 34-1/4 " | 39 | |||
| TWCL30-3514 | 3.5 "x14" | 24-1/4 " | 38-1/4 " | 42 | |||
| TWCL30-3516 | 3.5 "x16" | 26-1/4 " | 42-1/4 " | 46 | |||
| TWCL30-3518 | 3.5 "x18" | 28-1/4 " | 46-1/4 " | 49 | |||
| TWCL30-3520 | 3.5 "X20" | 30-1/4 " | 50-1/4 " | 52 | |||
| TWCL30-3524 | 3.5 "x24" | 34-1/4 " | 58-1/4 " | 58 | |||
| TWCL30-3528 | 3.5 "x28" | 38-1/4 " | 66-1/4 " | 64 | |||
| TWCL30-3530 | 3.5 "X30" | 40-1/4 " | 70-1/4 " | 67 | |||
| TWCL30-3532 | 3.5 "X32" | 42-1/4 " | 74-1/4 " | 70 | |||
| TWCL30-3534 | 3.5 "X34" | 44-1/4 " | 78-1/4 " | 73 | |||
| TWCL30-3536 | 3.5 "X36" | 46-1/4 " | 82-1/4 " | 76 | |||
| TWCL30-3540 | 3.5 "X40" | 50-1/4 " | 90-1/4 " | 82 | |||
| TWCL30-3548 | 3.5 "X48" | 58-1/4 " | 106-1/4 " | 94 | |||
| Gelaste vrouwelijke cilindercilinder | |||||||
| Onderdeelnummer | HENGEL DIAMETER |
Boring & HARTINFARCT |
Afmetingen | Poortgrootte | PIN MAAT |
GEWICHT (Lbs) |
|
| Ingetrokken | VERLENGD | ||||||
| TWCL30-4004 | 2 " | 4.0 "x4" | 14-1/4 " | 18-1/4 " | 1/2npt | 1 " | 33 |
| TWCL30-4006 | 4.0 "x6" | 16-1/4 " | 22-1/4 " | 37 | |||
| TWCL30-4008 | 4.0 "x8" | 18-1/4 " | 26-1/4 " | 42 | |||
| TWCL30-4010 | 4.0 "X10" | 20-1/4 " | 30-1/4 " | 44 | |||
| TWCL30-4012 | 4.0 "X12" | 22-1/4 " | 34-1/4 " | 48 | |||
| TWCL30-4014 | 4.0 "x14" | 24-1/4 " | 38-1/4 " | 52 | |||
| TWCL30-4016 | 4.0 "x16" | 26-1/4 " | 42-1/4 " | 55 | |||
| TWCL30-4018 | 4.0 "x18" | 28-1/4 " | 46-1/4 " | 59 | |||
| TWCL30-4020 | 4.0 "X20" | 30-1/4 " | 50-1/4 " | 63 | |||
| TWCL30-4024 | 4.0 "x24" | 34-1/4 " | 58-1/4 " | 70 | |||
| TWCL30-4028 | 4.0 "x28" | 38-1/4 " | 66-1/4 " | 77 | |||
| TWCL30-4030 | 4.0 "X30" | 40-1/4 " | 70-1/4 " | 81 | |||
| TWCL30-4032 | 4.0 "X32" | 42-1/4 " | 74-1/4 " | 85 | |||
| TWCL30-4034 | 4.0 "x34" | 44-1/4 " | 78-1/4 " | 89 | |||
| TWCL30-4036 | 4.0 "x36" | 46-1/4 " | 82-1/4 " | 92 | |||
| TWCL30-4040 | 4.0 "X40" | 50-1/4 " | 90-1/4 " | 100 | |||
| TWCL30-4048 | 4.0 "X48" | 58-1/4 " | 106-1/4 " | 114 | |||
| TWCL30-5004 | 2-1/2 " | 5.0 "x4" | 16-1/4 " | 20-1/4 " | 1/2npt | 1 " | 64 |
| TWCL30-5006 | 5.0 "x6" | 18-1/4 " | 24-1/4 " | 69 | |||
| TWCL30-5008 | 5.0 "x8" | 20-1/4 " | 28-1/4 " | 74 | |||
| TWCL30-5010 | 5.0 "X10" | 22-1/4 " | 32-1/4 " | 79 | |||
| TWCL30-5012 | 5.0 "x12" | 24-1/4 " | 36-1/4 " | 84 | |||
| TWCL30-5014 | 5.0 "x14" | 26-1/4 " | 40-1/4 " | 89 | |||
| TWCL30-5016 | 5.0 "x16" | 28-1/4 " | 42-1/4 " | 95 | |||
| TWCL30-5018 | 5.0 "x18" | 30-1/4 " | 48-1/4 " | 100 | |||
| TWCL30-5020 | 5.0 "x20" | 32-1/4 " | 52-1/4 " | 105 | |||
| TWCL30-5024 | 5.0 "x24" | 36-1/4 " | 60-1/4 " | 115 | |||
| TWCL30-5028 | 5.0 "x28" | 40-1/4 " | 68-1/4 " | 125 | |||
| TWCL30-5030 | 5.0 "x30" | 42-1/4 " | 72-1/4 " | 130 | |||
| TWCL30-5032 | 5.0 "x32" | 44-1/4 " | 76-1/4 " | 136 | |||
| TWCL30-5034 | 5.0 "x34" | 46-1/4 " | 80-1/4 " | 141 | |||
| TWCL30-5036 | 5.0 "x36" | 48-1/4 " | 84-1/4 " | 146 | |||
| TWCL30-5040 | 5.0 "x40" | 52-1/4 " | 92-1/4 " | 156 | |||
| TWCL30-5048 | 5.0 "x48" | 60-1/4 " | 108-1/4 " | 177 | |||
Standaard WCL -serie gelaste hydraulische cilinderdetails
